Sprayfine A401 4-Stage Turbine HVLP Spray System

Sprayfine A401 4-Stage Turbine HVLP Spray System

(6 reviews) Write a Review
$559.99
SKU:
A401SYS93
Shipping:
Calculated at Checkout
  • 15 - Days Money Back

Shipping

All items ship the next business day. Items cannot be backordered. Transit times for US customers range between 1 and 5 business days, depending on your location. All items ship from our Connecticut warehouse. Call us for express shipping: 860-204-9021




Sprayfine® A-401 4-Stage HVLP Turbine Spray System
  • Save Paint, Reduce Overspray!
  • Comes with super high flex lightweight 25' air hose - perfect for auto painting!
  • Produces 101 CFM (cubic feet per minute) air flow
  • Max pressure 8.5 psi
  • Works with standard 120-Volt household electrical outlet!
  • Portable, requires no air compressor!
  • 4-stage, bypass tangential discharge turbine motor (motor cooling air is kept separate from spraying air)
  • Filters are economical and easy to replace!
  • Includes all metal all chrome bleeder gun w/1 qt cup (no plastic parts)
  • 1.3mm projector set installed (other size pro sets available for $30.00 apiece)
  • Includes 1-qt remote cup/gun assembly
  • Includes paint cup holder!
  • Includes cleaning kit and nozzle wrench
  • Supplies heated, dry air - no need for moisture traps!
  • Full 2 year Warranty!
  • Full satisfaction warranty - return for any reason for full refund within 14 days!

What is HVLP?

HVLP turbine motors produce extremely high volumes of over 100 CFM (cubic feet per minute) at very low pressures (3 - 8) psi (pounds per square inch). Compare this to a typical air compressor set-up of 45 - 60 psi at 8 CFM. HVLP turbines supply air at a much lower velocity producing a softer, easier to control spray. This allows you to lay the paint on gently and not blast it on. Benefits of HVLP include less overspray and less paint wastage. Transfer efficiencies can reach 85%, resulting in 30-50% savings on the cost of paint! The quality of the finish is identical to the best high-pressure spray finishes. In addition, the air from the Sprayfine® turbine is heated by a process called adiabatic heating, eliminating any moisture in the finish being sprayed, and speeding up the flash-off rate, reducing runs and sags!

In some areas of the USA (Southern California for instance), high-pressure spray systems are prohibited in certain industries. HVLP turbine systems automatically comply with all known regulations in North America.

GUN SPECIFICATIONS:

Sprayfine® HVLP turbine gun



  • Professional grade - All metal construction, no rubber or plastic parts - entire gun can be immersed in solvent for cleaning!
  • external packing nut, no need to remove nozzle to adjust needle packing!
  • Fully adjustable spray pattern
  • "twist and click" air cap for vertical fan, horizontal fan, or circular pattern
  • Spring loaded air cap moves in and out by simply turning retaining ring - adjust to spray any size pattern!
  • Material adjustment knob - enables you to control paint output, making small items as easy to spray as large items!
  • Works with any HVLP turbine system!
  • Provides the best atomization in the industry!
  • Projector sets available in the following sizes: 0.5mm, 1.0mm; 1.3mm; 1.5mm; 1.8mm; 2.0mm, 2.2mm
  • Bleeder gun with infinite adjustment of pattern size
  • Comes with 1.3mm projector set installed:
    recommended size for medium viscosity finishes such as:
    varnish, polyurethane, sealer, lacquer, stain, cellulose, automotive, acrylic, oil, creosote, wood primer



Needle/Nozzle selection chart





Material

Needle and Nozzle

Wood Stains, Lacquers, Automotive, Cellulose, Synthetics, Acrylic, Oil

1.00mm

Polyurethane, Glitter Paints, Cellulose, Acrylics, Synthetics, Lacquers, Fluorescents, Wood Stains, Creosote, Wood Primer

1.30mm

Oil Base, Oxides, Primers, Marine Paint, Varnish, Enamels, Multi-Color, Industrial Synthetics

1.50mm

Emulsions, Oxides, Chlorinated Rubber, Zinc Rich Primers

1.80mm

Hammers, Latex, Oil Base Primers, Enamels, Marine, Masonry Paints, Texture Coatings, Heavy Primers, Water and Solvent Based Adhesives

2.00mm

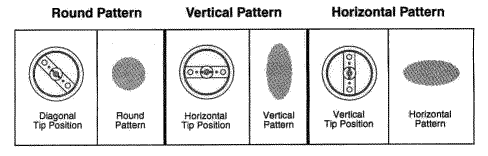

Spray Pattern selection

Spray Pattern Shape:
The Spray pattern is adjusted by turning the ears of the air cap into either a vertical, horizontal, or diagonal position as shown below:




Spray Pattern Size:

To change the spray pattern size, screw the air cap ring in or out accordingly. Turning the ring clockwise will make the pattern bigger (and reduce the atomization). Turning the ring counterclockwise will make the pattern smaller (and increase atomization).



Material Flow Adjustment:

To increase the material flow, turn the adjusting knob on the back of the gun counterclockwise, to decrease the material flow, turn the adjusting knob clockwise



HVLP Advantages



Saves You Time



Reduces work normally done by brush.
Clean up is fast and easy
Less draping and masking is needed



Saves You Money



Cuts material waste from overspray
Transfer efficiency of 85% or better
Save as much as 50% over conventional spray systems





Versatile



Sprays odd shapes
Pinpoint control
Sprays all surfaces requiring a fine finish
Lightweight, self-contained, portable
Maximum control with minimal overspray or bounceback
You set the spray pattern and delivery





Meets EPA Guidelines For Low VOC Emissions



Spray Virtually Any Material



Lacquers
Stains
Varnishes
Urethanes
Automotive Finishes
Solid-body stains
Oil or water-based enamels and house paints
Multi-colors
Latex
Epoxy
Primers
Enamel
Stone finish paints
Adhesives
Hammer finish
Marine finishes
Chlorinated rubber
Cellulose
Creosote
Fluorescents
Aluminum
Texture coatings



Use it To Spray:

Office Furniture
Cars/trucks
Boats
Motorcycles
Bathtubs/shower stalls
Wall tile
Countertops
Shelves
Wrought-iron
Piping
Fences
Shutters
Lockers
Equipment
Doors
Signs
Woodworking
Cabinets
Trim Work
